12 channel with monitor ECG100S CardioLine

CARDIOLINE
12 channel with monitor ECG100S CardioLine

Click on an image to open Gallery

MOD: 28883-04
7-10 days
  • Price: 1,352.00€
  • 1,090.32€ + TAX 24%
 Available Options
7-10 days
+176.00€
141.94€ + TAX 24%
Brand:CARDIOLINE
Extra options
Trolley Stand for ECG100L/S CardioLine
MOD: 28883-08
7-10 days
558.00€
450.00€ + TAX 24%
    Description

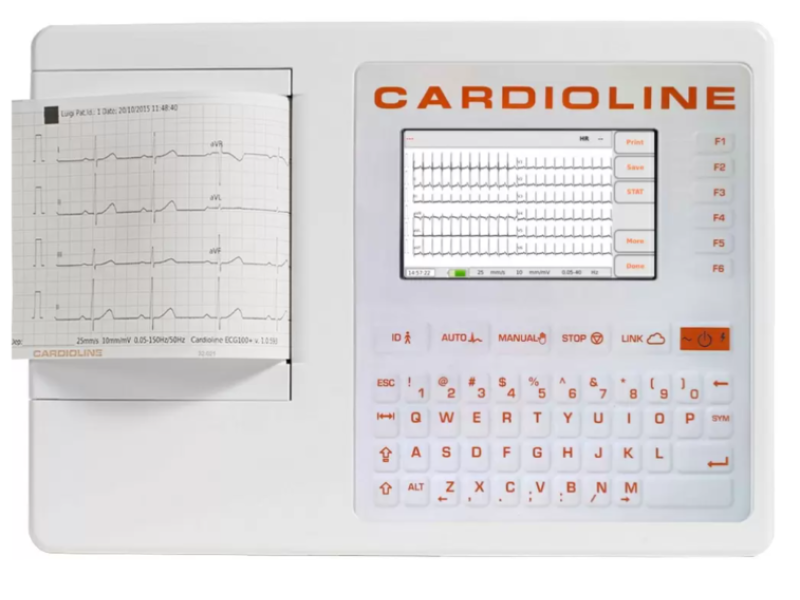

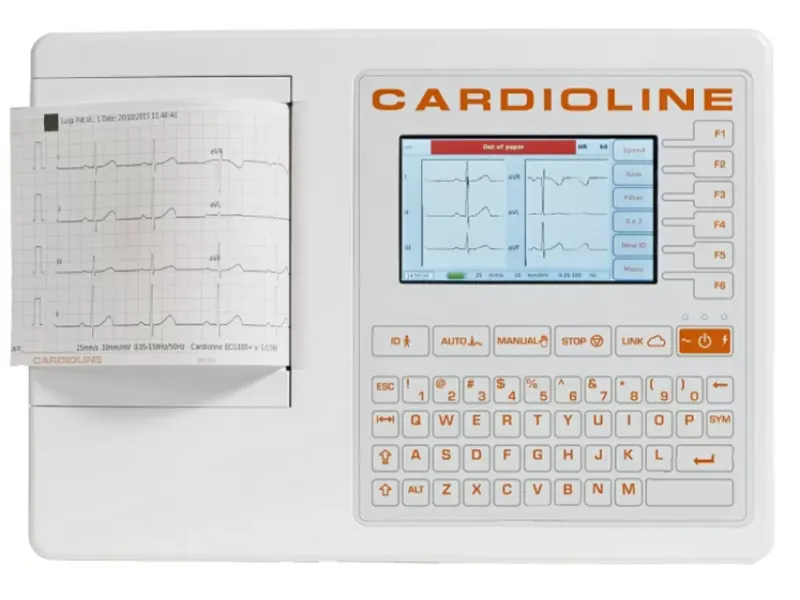

    12 channel with monitor ECG100S CardioLine



     The CardioLine ECG 100S is a high-performance 12-lead ECG designed for professional use, incorporating advanced technology for accurate and reliable ECG recording. It features easy integration with ECG management systems and offers a wide range of capabilities, making it ideal for clinics, hospitals, and mobile applications.

    Main Features:

      side image
      • Signal Processing Bandwidth: Ranges from 0.05 to 300 Hz, with the American Heart Association recommending a bandwidth over 250 Hz for pediatric use.
      • 12-Lead Printing: Prints 12 leads (3-6 channels) on 100mm paper, offering full signal analysis.
      • CMRR (Signal Noise Rejection): > 100 dB, ensuring excellent signal quality with minimal interference.
      • 20-bit A/D Converter: The high-resolution A/D converter delivers fine detail in the ECG signal representation.
      • Glasgow Algorithm*: The ECG100L optionally offers the Glasgow algorithm for ECG interpretation, suitable for adult, pediatric & SEMI patients.
      • High Sampling Rate: 32,000 samples per second, providing unaltered real-time signal recording.
      • Pacemaker Detection: The device detects pacemaker activity for accurate diagnostics.
      • Long Battery Life: The battery lasts for up to 500 ECGs on a full charge.
      • Data Export: Easy export of ECG data to USB flash drive in PDF format for quick transfer and storage.
      • Storage Memory: Stores up to 100 ECGs and can be upgraded to store up to 1000 ECGs.
      • Interpretation & Analysis: Features Glasgow Analysis Algorithm for adult, pediatric, and STEMI ECG interpretation.
      • Warranty: 24-month factory warranty for peace of mind.

      Additional Features:

      • Networking (LAN, Wi-Fi): The device connects to Cardioline ECGWebApp, a web-based ECG management system for editing and storage. Alternatively, the ECG EasyApp is available for easy management of patient ECGs.
      • ECG Formats: Supports SCP and PDF formats for easy storage and transfer.
      • GDPR Module: Ensures full protection of sensitive data with a strong authentication module built into the device.
      • Hospital-Grade Cart: A dedicated, high-quality hospital-grade cart enhances workflow and optimizes ECG recording.
      • Quick ECG Acquisition: Fast and easy operation with accurate measurements that exceed international standards.

       The CardioLine ECG 100S combines high-end technology with portability, making it the ideal choice for modern clinics and hospitals.

      Technical Specifications:

      • ECG Channels: 12-Lead (I, II, III, aVR-L-F, V1-V6)
      • Patient Cable: Standard 15D, 10 wires
      • CMRR (Common Mode Rejection Ratio): >100dB
      • Input Impedance: 100MΩ
      • Sampling Rate of the Input Stage: 32,000 samples/second/channel
      • Output Data Resolution: 24-bit, 1μV/LSB at 1000 samples/second/channel
      • Dynamic Range: +/- 400 mV
      • Pacemaker Detection: Hardware detection coupled with convolution digital filtering
      • Filters:
        • Linear phase digital diagnostic high-pass filter (according to 60601-2-25 2nd ed.)
        • 50/60 Hz AC interference adaptive digital filter
        • Digital low-pass filters at 25/40/150 Hz (for display and printing only)
      • Defibrillation Protection: Conforms to AAMI/IEC standards
      • Front-End Performance: High-performance signal processing
      • Lead Configuration: Standard or Cabrera
      • Acquisition Mode:
        • Automatic (12 leads)
        • Manual (3/6/12 leads)
        • Stat (12 leads)
      • Lead Fail Detection: Independent detection on all leads
      • Storage:
        • Internal storage up to 100 ECGs
        • Extended memory option to store up to 1000 ECGs
      • ECG Interpretation: Glasgow Analysis Program (for Adult, Pediatric, STEMI)
      • Export Formats: SCP, PDF standard format

        ECG Management & Connectivity:

          side image

          ECG EasyApp:

          A dedicated ECG management application for PC designed to allow for easy and complete handling of patient ECGs.


          side imageECGWebApp Integration:
          The device can automatically send ECGs to the Cardioline ECGWebApp web-based ECG management system for editing, storage, and further analysis.
