12 channel with monitor ECG200L CardioLine

CARDIOLINE
12 channel with monitor ECG200L CardioLine

Click on an image to open Gallery

MOD: 28883-05
7-10 days
  • Price: 1,612.00€
  • 1,300.00€ + TAX 24%
 Available Options
7-10 days
+176.00€
141.94€ + TAX 24%
Brand:CARDIOLINE
Extra options
Trolley Stand for ECG200L/S CardioLine
MOD: 28883-09
7-10 days
682.00€
550.00€ + TAX 24%
    Description

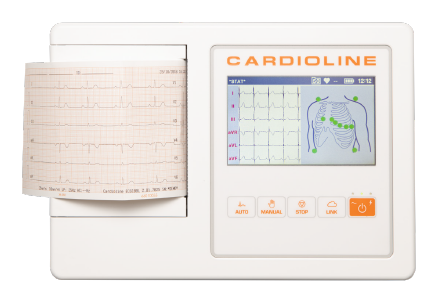

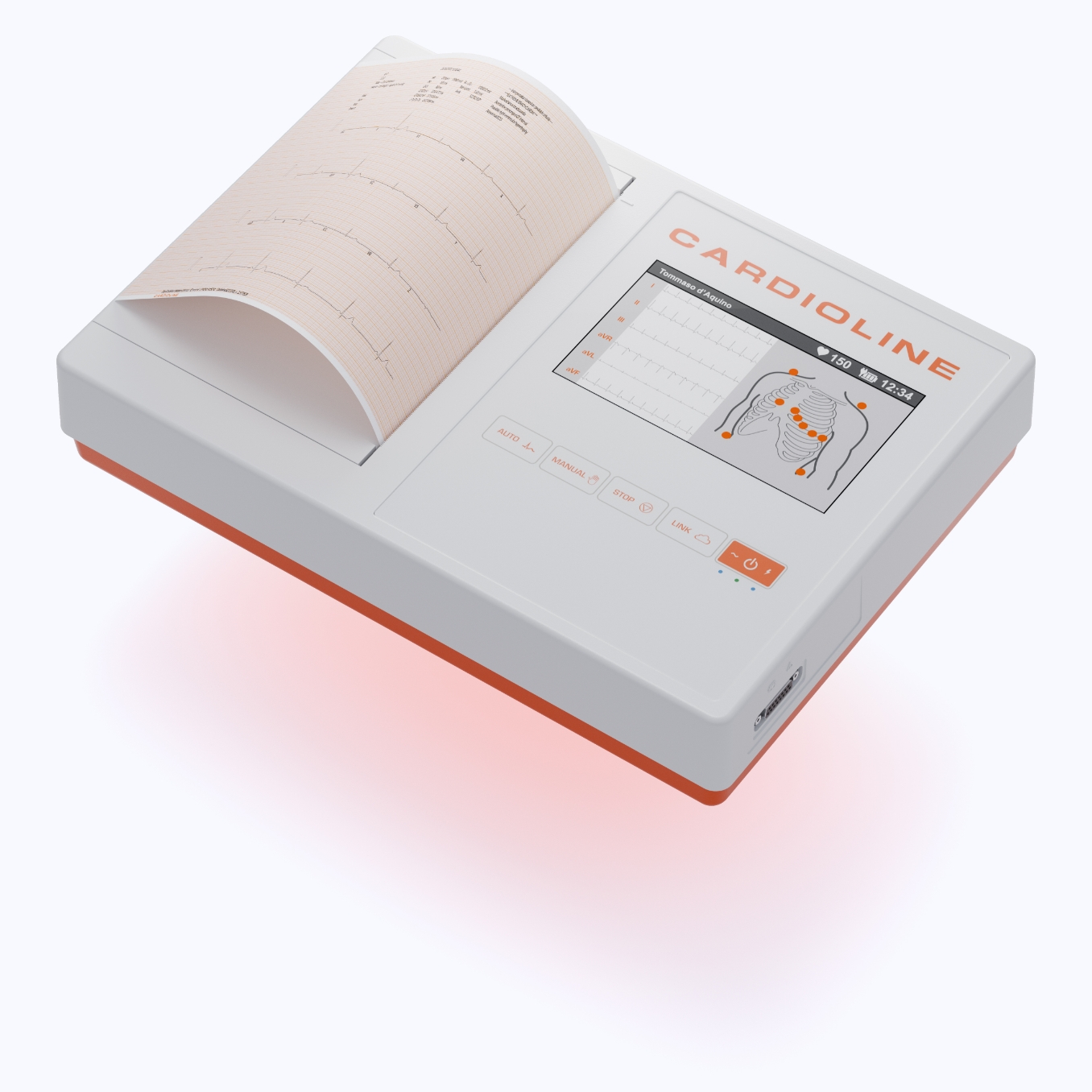

    12 channel with monitor ECG200L CardioLine



    The ECG100L is designed for total portability and ease of use, without compromising the high-quality standards the brand is known for. Equipped with advanced features and user-friendliness, it delivers reliable performance and enables efficient management of ECG data.



    Main Features:

      side image

      • Portability & Ease of Use: The device features a brilliant 5-inch color touch screen display and dedicated keys for fast operation.
      • Step-by-Step Guidance: The user is guided through the entire ECG procedure from electrode placement to quality checking, acquisition, printing, and storage
      • Multiple ECG Acquisition Modes: Automatic, manual, Stat, or rhythm ECGs can be easily acquired at the touch of a button.
      • Rhythm ECG Function: The new rhythm ECG function allows for rhythm analysis of 3 minutes of ECG, including heart rate (HR) trending and variability.

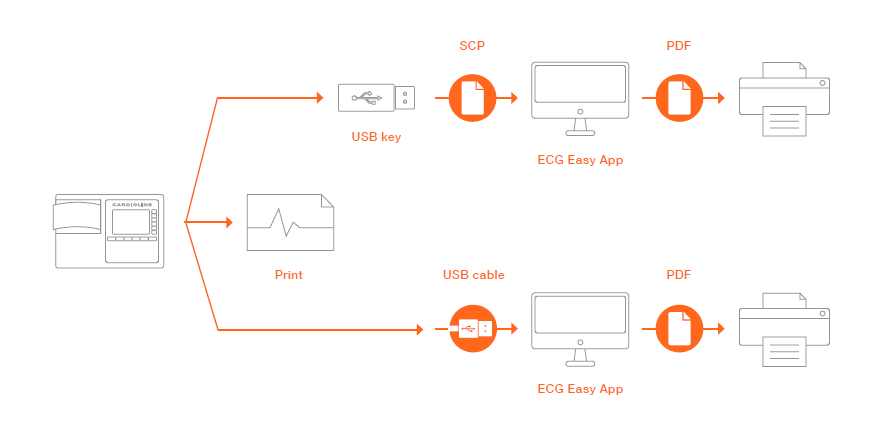

      • Data Storage & Export: ECG files can be stored directly on the device or exported via USB or memory stick to the "ECG EasyApp" for easy and complete management of patient ECGs on a PC.
      • Glasgow Algorithm*: The ECG100L optionally offers the Glasgow algorithm for ECG interpretation, suitable for both adult and pediatric patients.
      • Multiple ECG Functions: Users can select from various modes to acquire ECGs, such as automatic (12-leads), manual (3/6-leads), Stat (12-leads), and rhythm analysis (1/3-leads).
      • Lead Failure Detection: The device automatically detects lead failures and alerts the user for correction.



      Technical Specifications:

      • ECG Channels: 12-lead (I, II, III, aVR-L-F, V1-6)
      • Patient Cable: Standard 15D, 10 wires
      • Input Impedance: 100MΩ
      • Sampling Rate: 32000 samples/second/channel
      • Bandwidth: 0.05-150 Hz
      • Pacemaker Detection: Yes
      • Filters: Digital filters for pulse detection and defibrillator protection
      • ECG Interpretation: ECG analysis for adult, pediatric, and STEMI patients

      side image
