12 channel with monitor ECG200S CardioLine

CARDIOLINE
12 channel with monitor ECG200S CardioLine

Click on an image to open Gallery

MOD: 28883-02
7-10 days
  • Price: 1,984.00€
  • 1,600.00€ + TAX 24%
 Available Options
7-10 days
+176.00€
141.94€ + TAX 24%
Brand:CARDIOLINE
Extra options

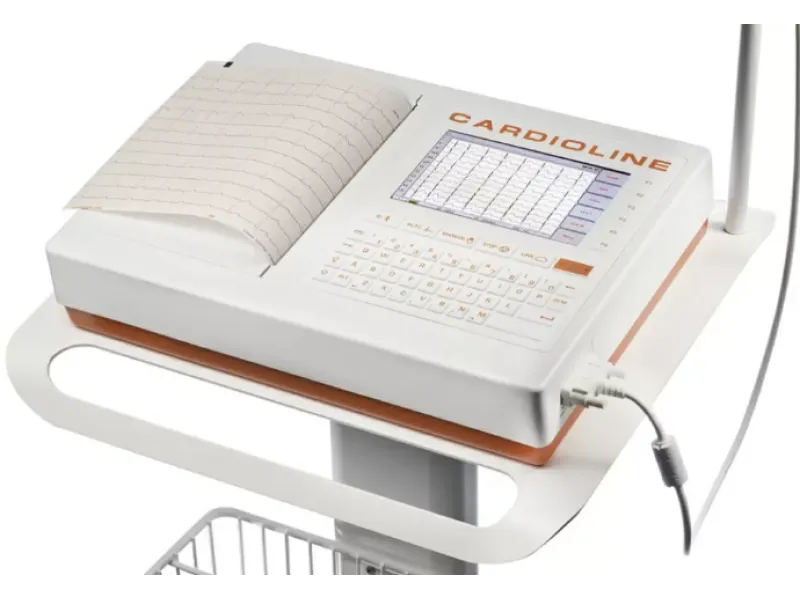

Trolley Stand for ECG200L/S CardioLine
MOD: 28883-09
7-10 days
682.00€
550.00€ + TAX 24%
    Description

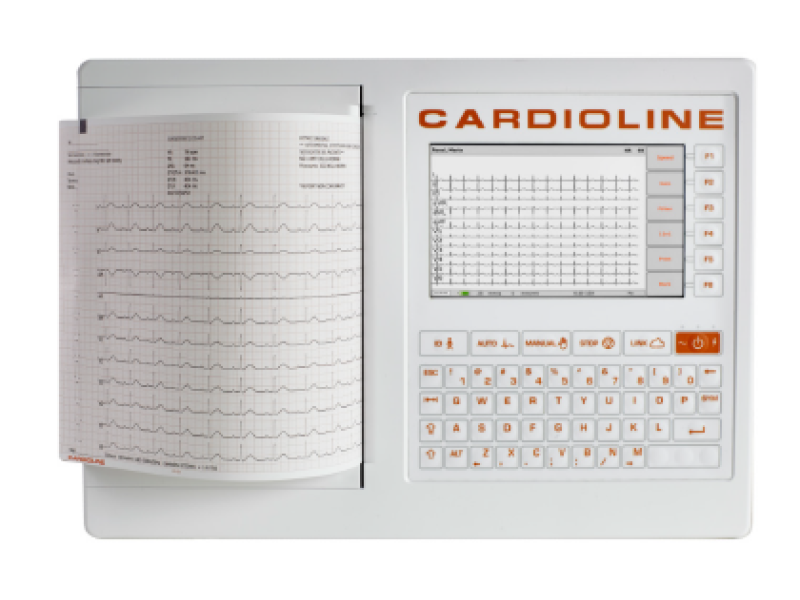

    12 channel with monitor ECG200S CardioLine



    The ECG 200S CardioLine is the new professional 12-lead electrocardiograph featuring cutting-edge technology for excellent ECG recording. With high-end technical specifications, the ECG 200S provides highly accurate measurements that exceed the most stringent standards and international recommendations in cardiology. The device focuses on usability and fast ECG acquisition, ensuring effective and quick recordings for healthcare professionals.



    Main Features:

      side image

      • Bandwidth: From 0.05 to 300Hz (in line with the American College of Cardiology's recommendation for children over 250Hz).
      • CMRR: >100dB for excellent noise rejection.
      • A/D Converter: 24-bit, ensuring high signal resolution.
      • High Sampling Rate: 32,000 samples/second for precise signal reproduction.
      • 12-lead printouts on large thermal paper for high-quality ECG results.

      • Glasgow Algorithm*: The ECG100L optionally offers the Glasgow algorithm for ECG interpretation, suitable for both adult and pediatric patients.

      • Pacemaker Detection for improved diagnostics.
      • Long Battery Life: Supports up to 500 ECGs per full charge.
      • USB Export: Easy export of ECG files in PDF format via the "ECG EasyApp" software.
      • Networking (LAN, Wi-Fi): Connects seamlessly to ECG management applications such as Cardioline ECGWebApp.
      • Storage & Analysis: Stores up to 100 ECGs with the option to upgrade to 1000, and supports Glasgow Analysis for adult, pediatric, and STEMI patients.
      • Factory Warranty: 24 months.



      Technical Specifications:

      • ECG Channels: 12-lead (I, II, III, aVR-L-F, V1-6).
      • Patient Cable: Standard 15D, 10-wire.
      • CMRR (Noise Rejection Ratio): >100dB for excellent noise rejection.
      • Input Impedance: 100MΩ.
      • Sampling Rate of Input Stage: 24-bit, 32,000 samples/second/channel.
      • Data Resolution: 1μV/LSB, 1000 samples/second/channel.
      • Dynamic Range: +/- 400 mV.
      • Bandwidth: From 0.05 to 300 Hz.
      • Pacemaker Detection: Provided for improved diagnosis.
      • Filters:
        • Linear phase digital high-pass filter for diagnostic analysis.
        • Digital low-pass filters at 25/40/150 Hz for display and printing only.
        • 50/60 Hz AC interference adaptive digital filter for improved recording quality.
      • Defibrillation Protection: Compliant with AAMI/IEC standards.
      • Acquisition Mode: Automatic (12-lead), Manual (3/6/12-lead), Stat (12-lead), Rhythm (1/3-lead).
      • Lead Fail Detection: Independent on all leads.
      • Storage: Internal storage up to 100 ECGs with an upgrade option to 1000 ECGs.
      • ECG Interpretation: Includes the Glasgow Analysis Program for Adult, Pediatric, and STEMI.
      • Export Format: SCP-PDF.

      ECG Management & Connectivity:

      side image

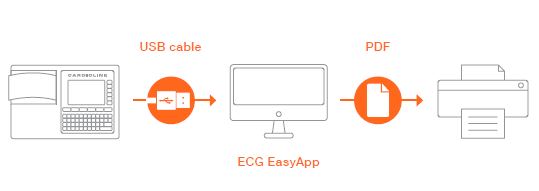

      ECG EasyApp:

      A dedicated ECG management application for PC designed to allow for easy and complete handling of patient ECGs.

      side image

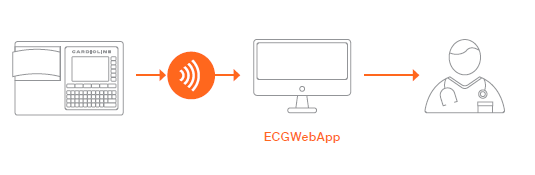

      ECGWebApp Integration:

      The device can automatically send ECGs to the Cardioline ECGWebApp web-based ECG management system for editing, storage, and further analysis.
