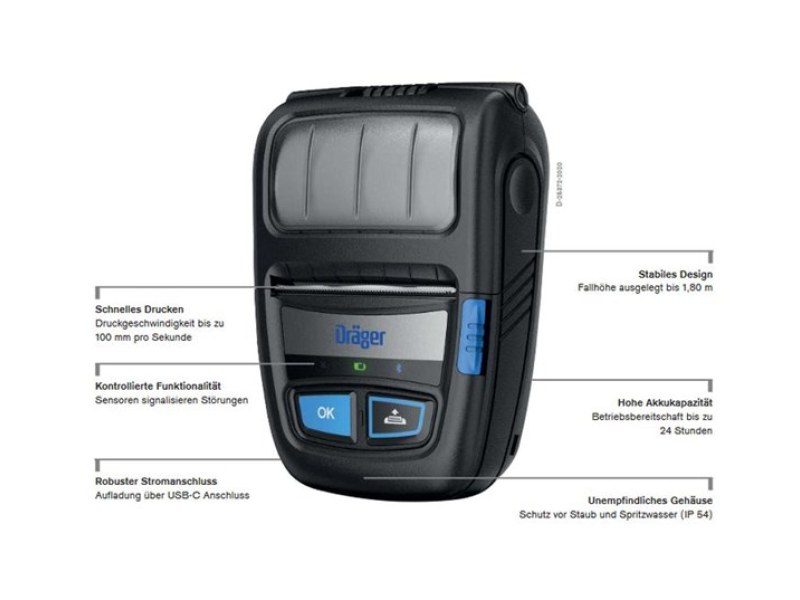

The Dräger Mobile Printer BT allows wireless printing with any compatible Dräger test device within a radius of up to 15 meters. A retaining clip allows you to attach the small and lightweight mobile printer to your belt. The uncomplicated operation is done with only two buttons. Illuminated symbols inform you about the respective status of the device. The Bluetooth protocol allows you to print from a distance of up to 15 m in combination with any compatible Dräger test device. This allows you to individually determine the position of the printer to the Dräger test device depending on the situation. Due to the low total weight of only 250 g (including battery and paper), the printer can be ideally worn on the belt without becoming a burden. Thus, the printout is always at hand for you and your work processes can be carried out optimally.



Technical data:



Printer Thermal printer Dräger Mobile Printer BT
Printer paper thermal paper, width 58 mm
Ambient conditions: Operating -15 to +50 °C / 10 to 80 % r. h. (non-condensing)
when charging the battery 0 to +40 °C 10 to 80 % r. h. (non-condensing)
for short-term storage (≤ 30 days) -20 to +60 °C 10 to 70 % r. h. (non-condensing)
for long-term storage (> 30 days) -20 to +40 °C 10 to 70 % r. h. (non-condensing)
Size: Dimensions 79.6 mm × 114.2 mm × 44.3 mm (WxHxD)
Weight 160 g
Power supply: Rechargeable Lithium-Ion 7.4 V, 1200 mAh battery
Charger input voltage: 100-250 V (0.5 A), output voltage: 8.4 V (0.8 A)
Interfaces USB, Bluetooth® V4.1 (Classic/LE), NFC Auto Pairing
CE Marking Electromagnetic Compatibility

Scope of delivery:

Printer Dräger Mobil Printer BT
Printer thermos-paper, width 58mm
Rechargeable battery
Instruction manual
