Professional trinocular microscope MOTIC PA53 BIO FS6 EDF

• Trinocular tube, Siedentopf type
• Colour Corrected Infinity Optical System (CCIS®)
• 100:0/20:80/0:100
• Widefield N-WF10X/23mm with diopter adjustment
• Interpupillary distance 50-75mm
• CCIS® HPlan S-APO (Fluor)

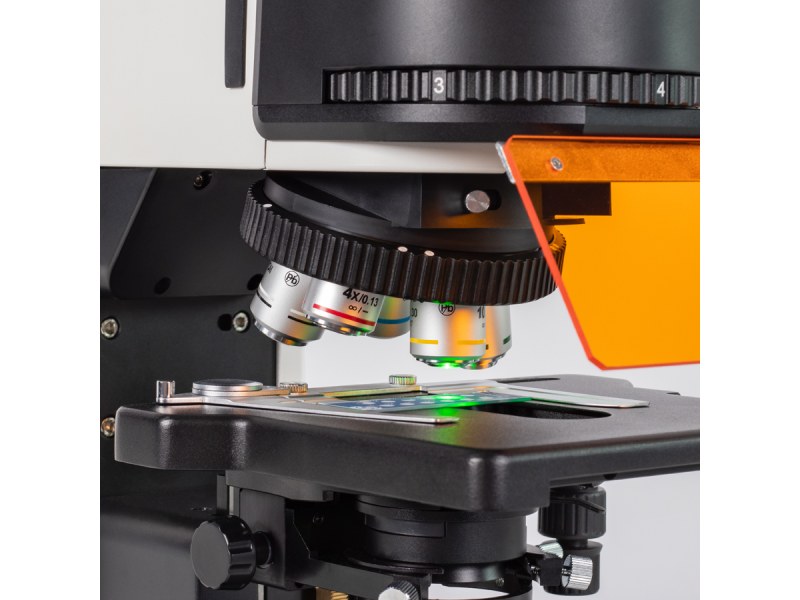

• 4X/0.13 (WD 17.3mm), 10X/0.3 (WD 11.7mm), 20X/0.5 (WD 2.2mm), 40X/0.75/S (WD 0.7mm), 100X/1.3/S-Oil (WD 0.1mm)
• Filters ND6, ND25, LBD

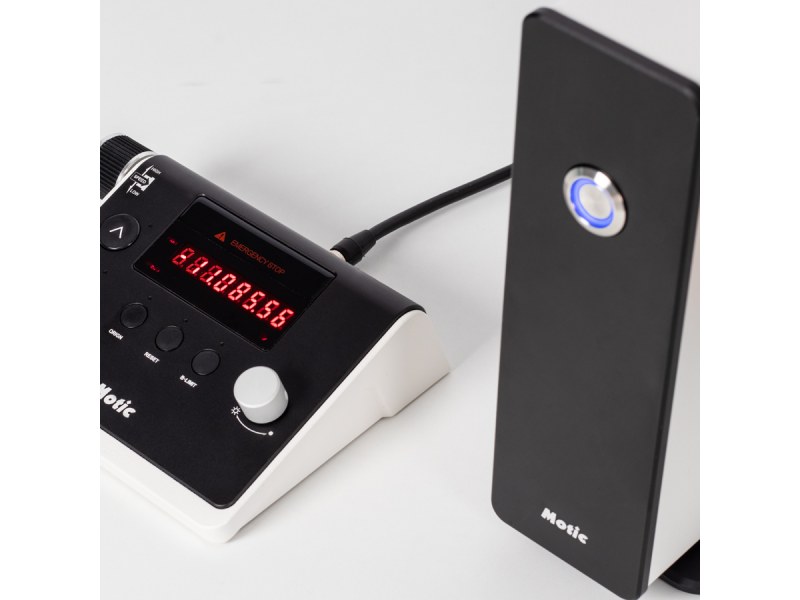

• Upright. Auto EDF focusing function, motorized Z-axis (30mm stroke) with control box and control pad
• Included: Dust cover, power cord, Allen key, immersion oil (5ml), 2 empty filter cubes, UV light blocking tube, UV light protective shield
• Dimensions LxWxH: 648x247x513mm

Technical Data:

• Viewing angle: 30°
• Mechanical stage with built-in low position rackless coaxial stage control and sample holder
• Stage size: 220x170mm
• Incident illumination: LUMOS High-power LED FL light source (Optional: Mercury light source)
• Transmitted illumination: Köhler Quartz halogen 12V/100W with intensity control
• Software: Motic Images Plus 3.0 software with plug-in FL channel merge
• Power supply: 110-240V (CE)
