Polarized Binocular Microscope MOTIC BA310 POL

Based on the success of its popular BA Microscope Series for Bio-Medical applications, Motic is pleased to introduce the new BA310POL, an extremely powerful yet affordable Polarization microscope for Transmitted light samples.

The BA310POL is designed for the examination of birefringent samples from petrography and mineralogy, and can also be used for the synthetic materials industry where repeatable observations can be performed with efficiency and reliability. The BA310POL also works especially well in Educational applications of material professions, where affordability and ease-of-use are key requirements.

To meet increasing demands for a dedicated, professional polarizing microscope, the BA310Pol features strain-free CCIS optics built-up around a sturdy frame with centerable objectives.

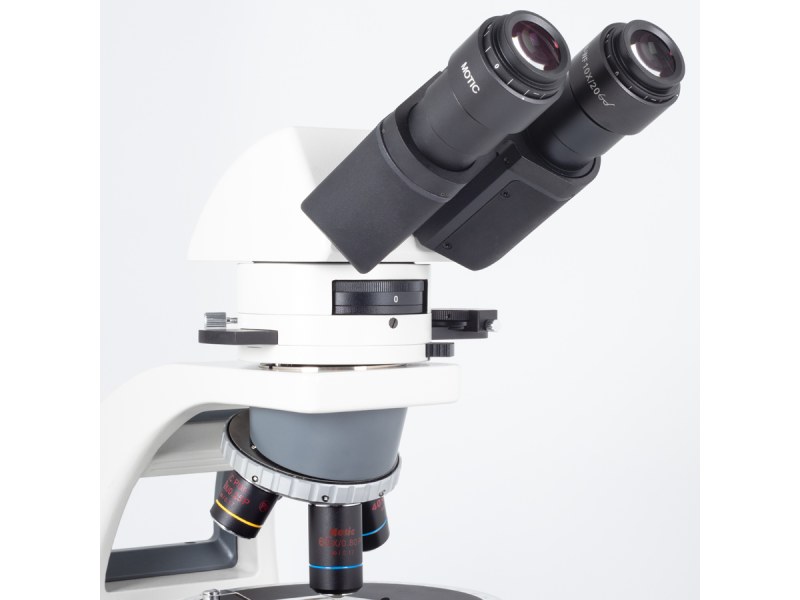

• Binocular head Siedentopf type, 30º inclined
• Wide?eld high eyepoint eyepieces N-WF PL10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
• One eyepiece with crosshair reticle and positioning pivot

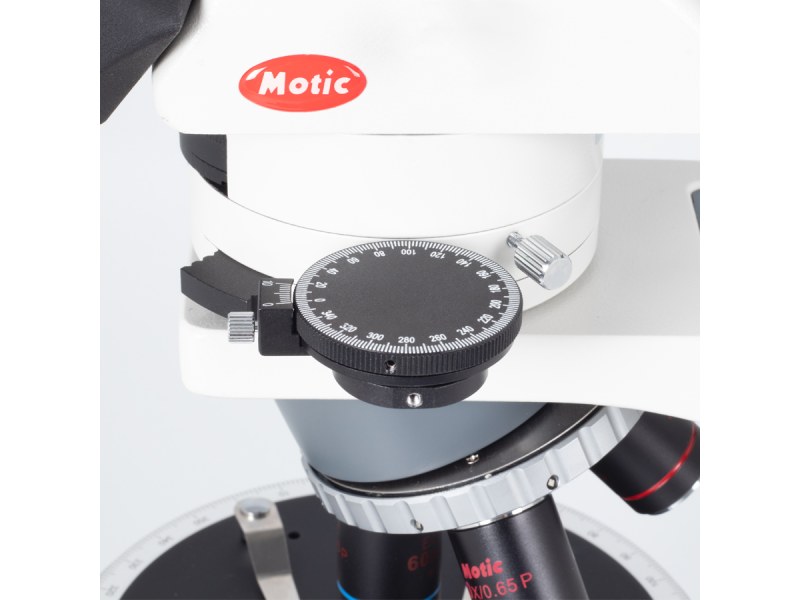

• Intermediate tube with rotatable analyzer 360º and Bertrand lens
• Empty insertion plate
• Reversed quadruple revolving nosepiece, single positions centrable
• CCIS® Plan achromatic Strain-free objectives EC PL P 4X, 10X, 40X S, 60X S
• Coaxial coarse and fine focusing system with tension adjustment

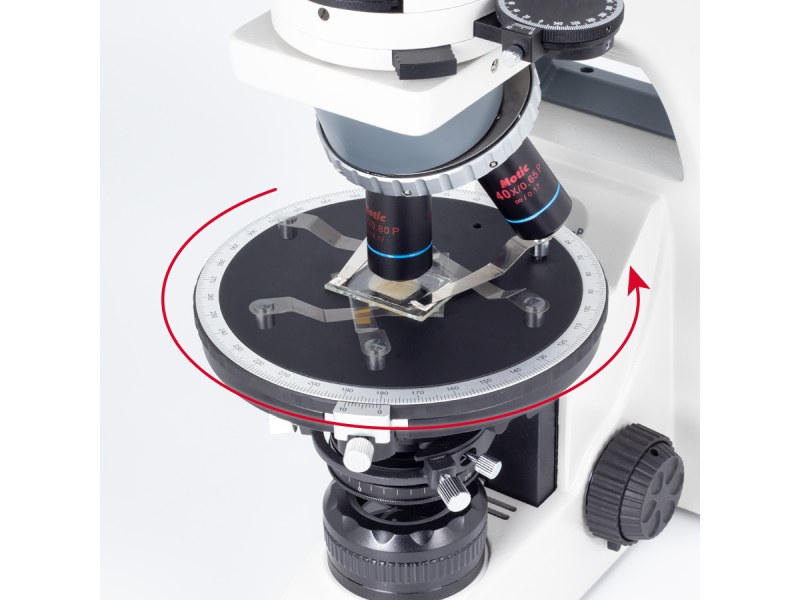

• 360° circular rotatable stage
• Achromatic swing-out condenser N.A. 0.90/0.13 (strain-free) with iris diaphragm
• Rotatable polarizer, fixed on condenser carrier
• Koehler illumination quartz halogen 6V/30W with intensity control
• Power supply 100V-240V (CE)
• 45mm blue filter, power cord, Allen hexagonal key, vinyl dust cover
