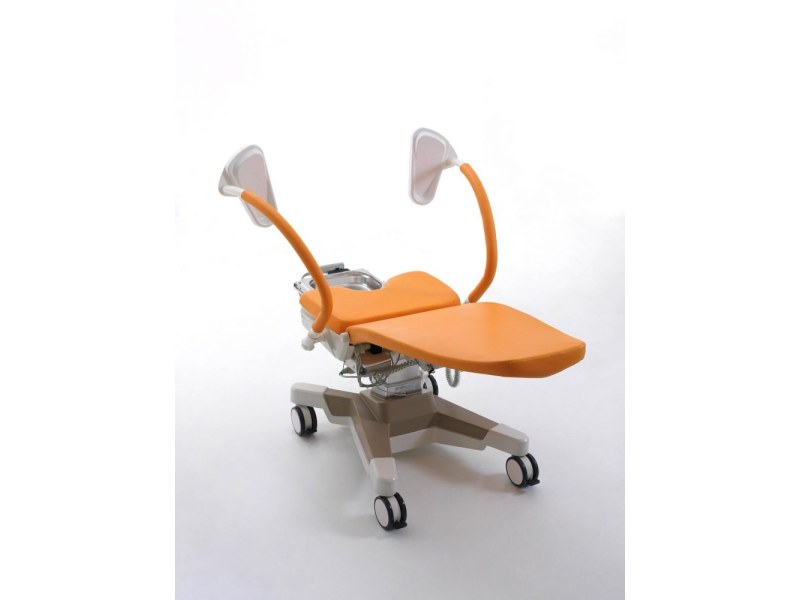

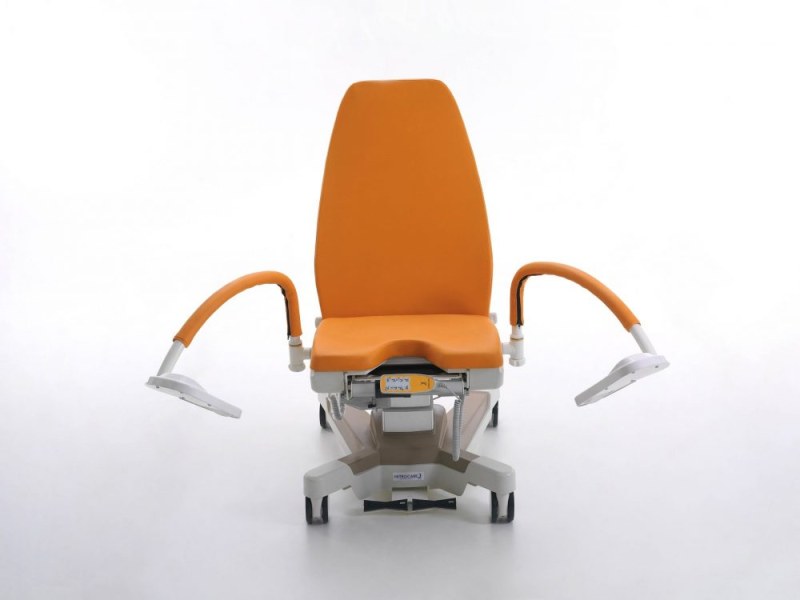

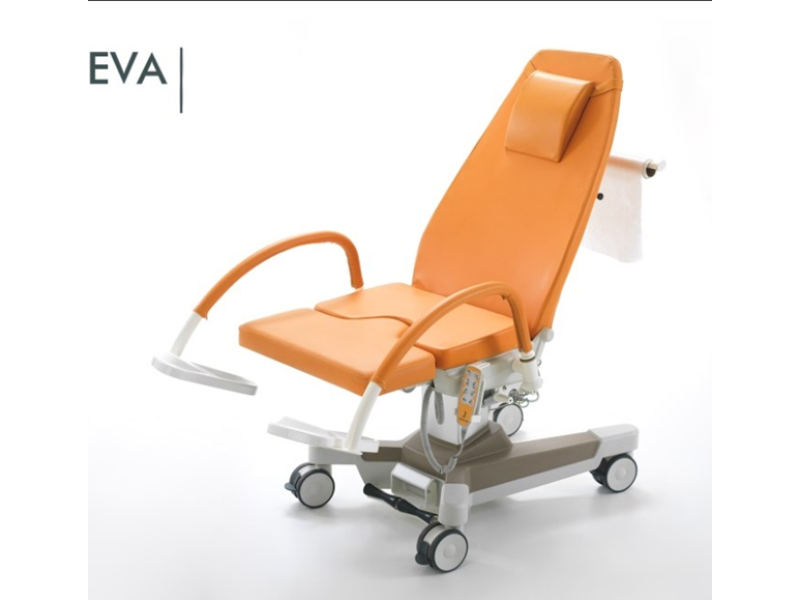

Gynecological Exam chair JMM004
Modern and ergonomic design
Functionality and elegance High quality materials
Call up all electrical movements via hand control or foot control
Electrical leg holder adjustment
Low starting position
Memories options available Variety of options
Wide range of colouring
Easy to clean and disinfect
Safety load 200 kg
STANDARD ACCESSORIES
Pair of swiveling and electrically height adjustable leg rest with plastic ABS foot support and the corresponding clamp
Head cushion removable
Stainless steel rail 30x10mm at seat section

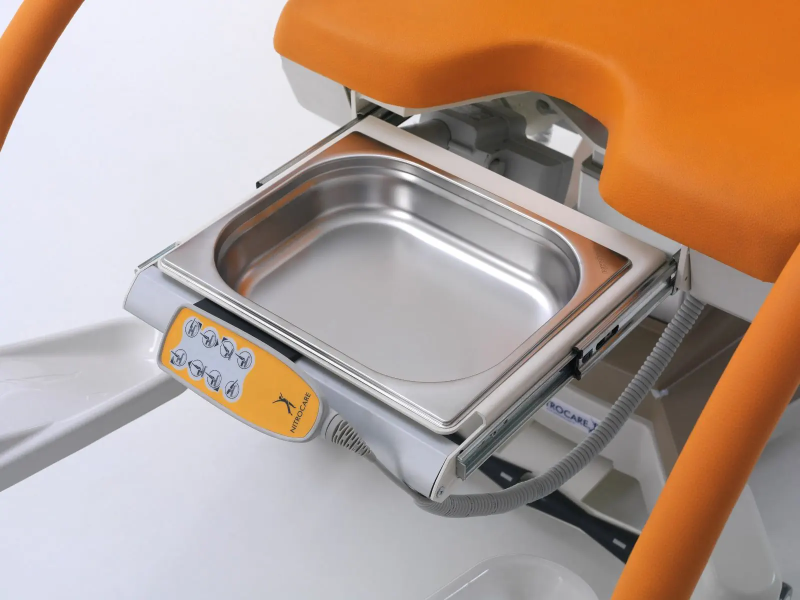

Inox basin
Basin holder with safety device
Paper roll holder
Plastic ABS cover for back section, seat and base.
Metal heavy construction painted with electrostatic chip resistant anticorossion paint covered with plastic ABS cover
Divided in three sections (leg section is removable),made with intergrated upholstery mattress washable and disinfectable in a choice of colours.
Electrically adjustable leg holders and a low starting position 20cm from ground offers maximum comfort without the need of a foot step.
nox basin deep with pipette
Leg section removable
Leg section removable and foldable Detachable upholstery for cleaning Stainless steel 18/10 side rails at the back
rest 30x10mm (25x10mm upon request)
Stainless steel 18/10 side rails at the seat section 30x10mm(25x10mm upon request)
Arm rest for blood donation with corresponding clamp
I.V. pole adapter
I.V. pole
Inox tray with moving arm for equipment
Colposcope holder
Foot – switch instead of hand devise for all electric adjustments
Integrated rechargeable battery back up system for all electrical movements
Handset with magnetic locking key and memory for selected positions
Wheels with individual brakes Adaptor for portable lighting Intergrated socket
Drain gutter for fluids
TECHNICAL DATA
Electric movement of High/Low when seat section horizontal 58cm-90cm
Electric movement of High/Low when seat section in trend position 54cm-90cm
Electric movement of back section 0 till +50Ο
Electric movement trend-antitrend +5 till -20Ο
Electric movement of leg rests
Motor voltage 24V DC
Connection main (different upon request) 230 V AC 50-60 Hz
Safety load 200kgr
Bedding platform dimensions
Head section 260mm x 550mm
Back section 650mm x 550mm
Seat section 370mm x 550mm
Leg section 350mm x 550mm
Base dimensions 1020mm x 560mm
